规格型号价格
规格参数
产品特色
- 可载入ICNIRP、EN 50366、IEC 62233等规范(选购)，并适用于其他由ICNIRP衍生的低频磁场辐射测试规范(5Hz~400kHz)
- 频率磁场强度范围 (5Hz~400kHz): 10nT~10mT
- 实时频谱分析
- 可在两个频带下提供全带宽频谱
- 三轴正交的天线可同步取样
- 频谱zoom in/out功能，提供更详尽的分析频谱峰值之频率分辨率
- 波行捕捉功能
- 提供个别的X、Y、Z方向的测量
- 两种波型呈现方式：低通滤波或2kHz的高通滤波波型zoom in/out功能，提供更详细分析。
- 资料数据的纪录
- 可自由选择数据呈现的编排模式，如RMS值、频谱与波型
- 可直接储存测试数据数据
- 长时间的自动记录，如检测实验室环境背景
- 大型触碰式控制板显示(320x240点矩阵)
- 标准USB接口
- 可由软件远程遥控，自行设计报搞格式(选购)
产品介绍

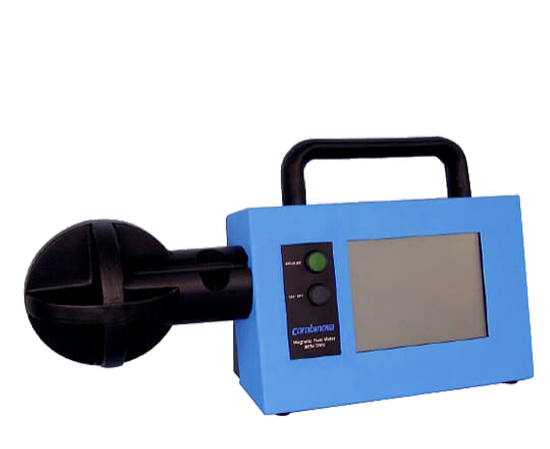

Magnetic Field Meter 3000 is a magnetic field instrument with a unique combination of features like:
- Real time wideband spectrum anal y sis in three dimensions.
- Peak-detection in time do main measurement
- Orthogonal coils sensor for field direction independence
- Frequency range 5Hz - 400kHz
- Dynamic range from 10nT to 10mt (high field version 100nT to 100mT) with true RMS measurements of both the wideband or any frequency specific magnetic field
- Logging with RMS-values and spectrum
- Touch panel dis play with numerical, and graphical result presentation
- Separate probe version
Magnetic Field Meter 3000 is designed to handle a variety of applications:
- ICNIRP measurements of both occupational (2010) and public (1998) exposure with built in evaluation against reference levels.
- General purpose magnetic field measurements with possibilities to select frequency response, and result presentation
- Single or continuous measurement
- Manual and automatic logging, up to 7932 readings including FFT
- Remote mode capabilities controlled from a PC
- PC support software to handle remote mode operation, storage, presentation, analysis, and report generation
Evaluation against:
- ICNIRP occupational 1998 and 2010
- ICNIRP public 1998 and 2010
- En 50500 occ and pub
- En 62233 ICNIRP
- IEC 62233 IEEE
- EU Directive 201335, AL Low, AL High and AL Limbs
型号规格
| 型号 | 规格说明 |
|---|---|
| MFM 3000 | Magnetic Field Meter |
