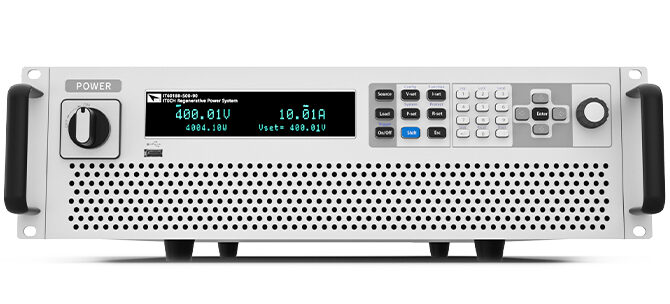

IT6000B系列 回馈式源载系统

IT6000B系列 回馈式源载系统

型号：IT6000B
分类 ITECH 艾德克斯 / 直流电源系列 应用场景 ITECH 艾德克斯
我要询价

用途场景

研发 实验室研发、新产品开发、技术研究
生产 生产线检测、工艺控制、制造过程监控
品控 质量检验、来料检测、成品测试
合规认证 计量检测、仪器校准、精度验证
教学实训 教学实验、技能培训、实训演示
维修 设备维修、故障诊断、维护保养

规格参数

产品概要

IT6000B系列采用SiC技术，将双向电源和回馈负载集成到了仅3U体积的一台仪器内。一个按键就可以让它在双向电源和回馈负载中间自由切换，不光可以作为一台独立的双向电源使用，实现source的功能，提供功率；也可以作为一台独立的回馈负载使用，不但可以吸收功率还能将消耗的能量清洁的返回至电网，具有标准的双象限功能。 IT6000B系列可至2250V。利用主从模式支持并联，主动均流，功率可扩展至2MW。内置函数发生器，可以自由的产生任意波形，并通过USB接口导入LIST文件生成波形。IT6000B系列广泛应用于大功率电池、汽车电子、绿色能源、高速测试等多个方面，是一款功能丰富、性能优异、适用广泛的产品系列。 产品型录 产品视频 操作视频 产品介绍 应用资料 用户手册

产品型号

型号电压电流功率分辨率精 度接 口尺寸
IT6005B-80-15080V150A5kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6010B-80-30080V300A10kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6015B-80-45080V450A15kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6030B-80-90080V900A30kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6045B-80-135080V1350A45kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6060B-80-180080V1800A60kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6075B-80-204080V2040A75kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6090B-80-204080V2040A90kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6105B-80-204080V2040A105kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6120B-80-204080V2040A120kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6135B-80-204080V2040A135kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6150B-80-204080V2040A150kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6165B-80-204080V2040A165kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006B-300-75300V75A6kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012B-300-150300V150A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018B-300-225300V225A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036B-300-450300V450A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054B-300-675300V675A54kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072B-300-900300V900A72kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090B-300-1125300V1125A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108B-300-1350300V1350A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126B-300-1575300V1575A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144B-300-1800300V1800A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162B-300-2025300V2025A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180B-300-2040300V2040A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198B-300-2040300V2040A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006B-500-40500V40A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012B-500-80500V80A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018B-500-120500V120A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036B-500-240500V240A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054B-500-360500V360A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072B-500-480500V480A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090B-500-600500V600A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108B-500-720500V720A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126B-500-840500V840A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144B-500-960500V960A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162B-500-1080500V1080A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180B-500-1200500V1200A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198B-500-1320500V1320A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006B-800-25800V25A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012B-800-50800V50A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018B-800-75800V75A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036B-800-150800V150A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054B-800-225800V225A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072B-800-300800V300A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090B-800-375800V375A90kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108B-800-450800V450A108kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126B-800-525800V525A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144B-800-600800V600A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162B-800-675800V675A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180B-800-750800V750A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198B-800-825800V825A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018B-1500-401500V40A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036B-1500-801500V80A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054B-1500-1201500V120A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072B-1500-1601500V160A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090B-1500-2001500V200A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108B-1500-2401500V240A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126B-1500-2801500V280A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144B-1500-3201500V320A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162B-1500-3601500V360A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180B-1500-4001500V400A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198B-1500-4401500V440A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018B-2250-252250V25A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036B-2250-502250V50A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054B-2250-752250V75A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072B-2250-1002250V100A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090B-2250-1252250V125A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108B-2250-1502250V150A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126B-2250-1752250V175A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144B-2250-2002250V200A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162B-2250-2252250V225A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180B-2250-2502250V250A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198B-2250-2752250V275A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U

*以上规格如有变动，恕不另行通知

产品特点

  • 采用SiC技术 ， 一机两用，双向电源和回馈式负载结合一体
  • 面板一键切换源载

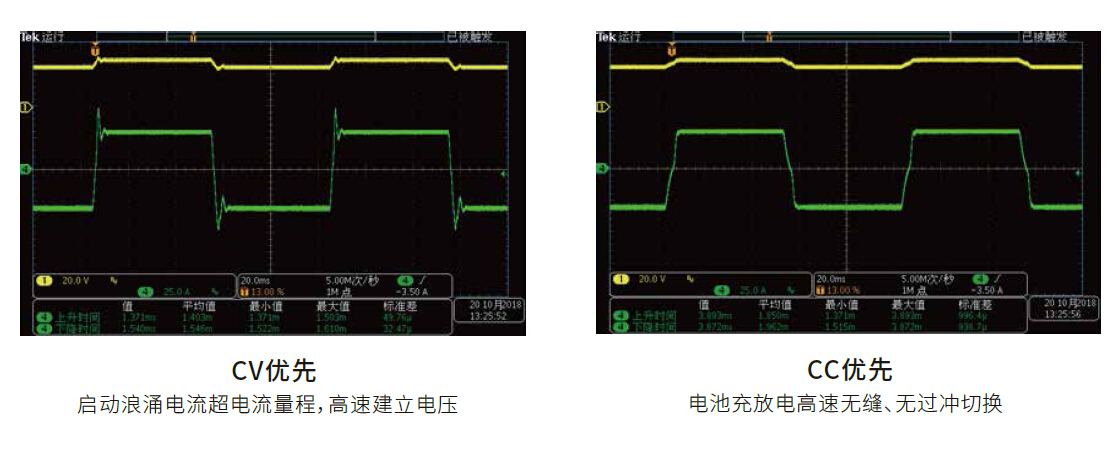

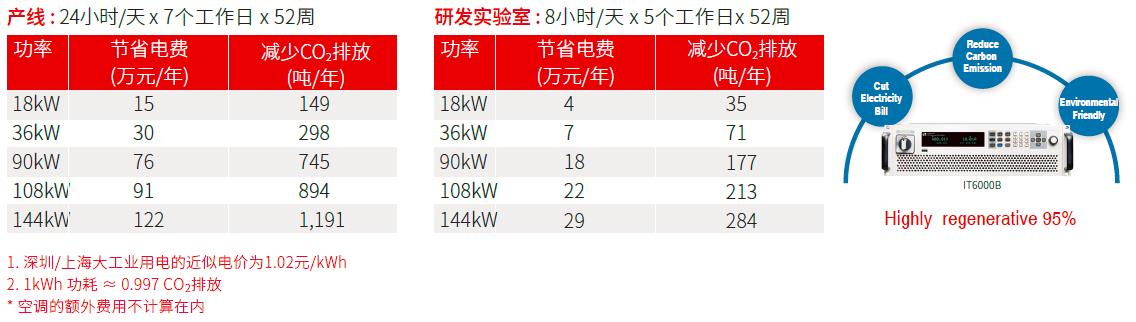

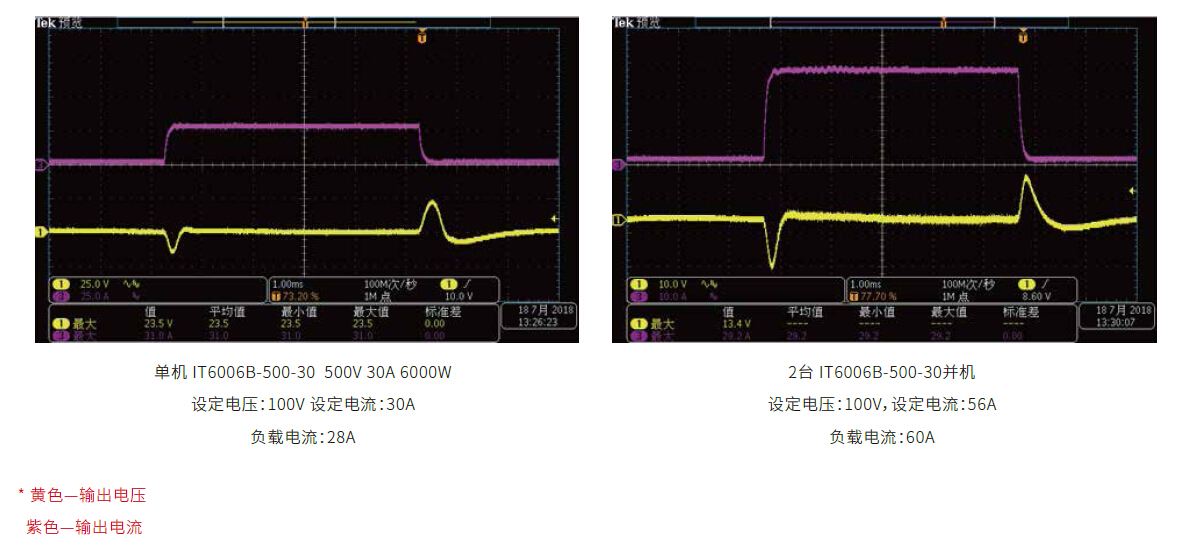

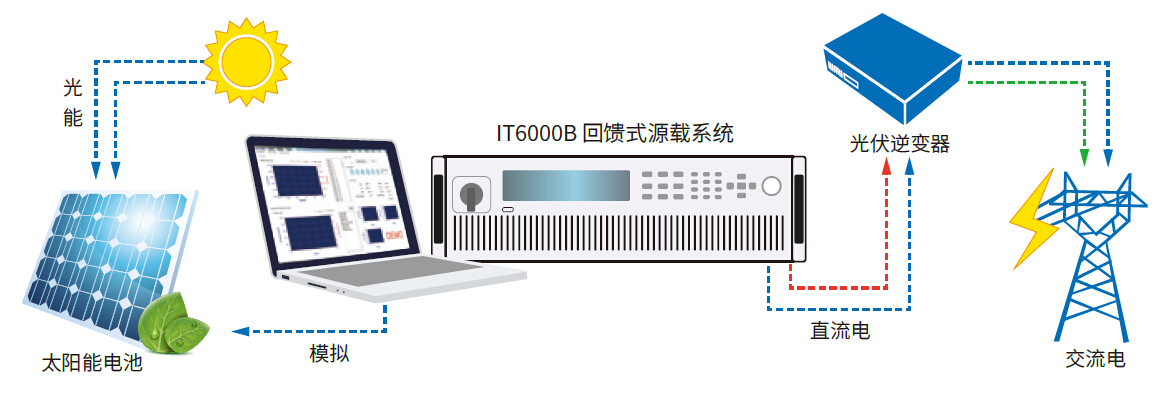

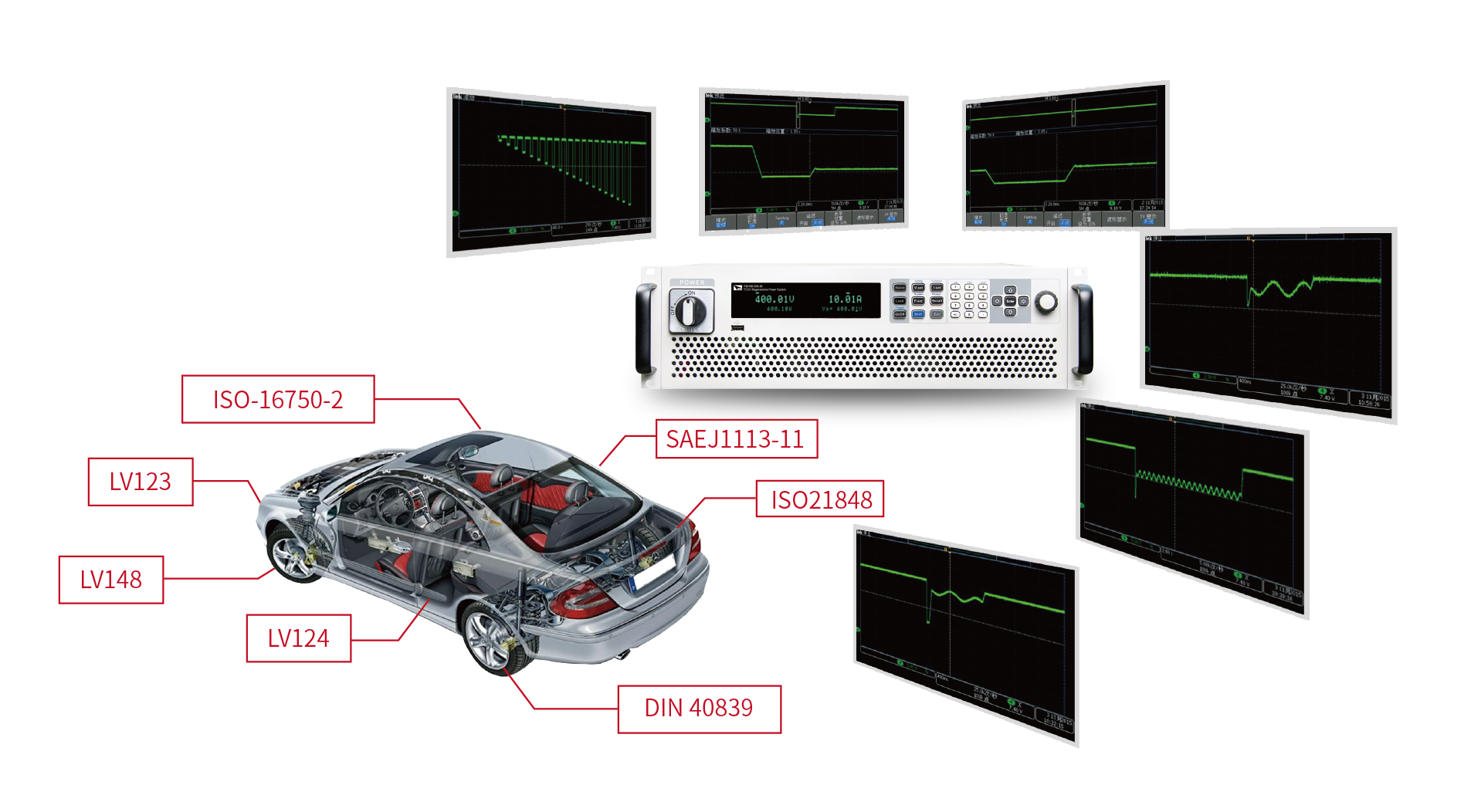

  • 高功率密度，3U内可达18kW ，并联可扩展至2MW 电压输出范围：0至2250V 电流输出范围：0至2040A（单机柜），0至8000A（机柜间并联） 双向能量传递，跨象限无缝切换 支持控制环优先模式设定，设置不同环路速度 内置LV123、LV148、DIN40839、ISO-16750-2、SAEJ1113-11、LV124和ISO21848标准汽车功率网用电压曲线 能量回馈近95% 可作光伏模拟器（搭配SAS1000）， 支持太阳电池矩阵I-V曲线模拟功能
  • 可作电池模拟器（搭配BSS2000软件），仿真磷酸铁锂/三元锂电池特性曲线
  • 可作B attery cycle测试 ，支持CC/CV/CP等多种电池充放电模式 内置函数发生器，支持任意波形发生 输出阻抗可调节
  • 多种保护功能，支持OVP、±OCP、±OPP、OTP、掉电、孤岛保护 内置USB/CAN/LAN/数字IO接口，选配EtherCAT/GPIB/模拟量&RS232

产品功能与优势

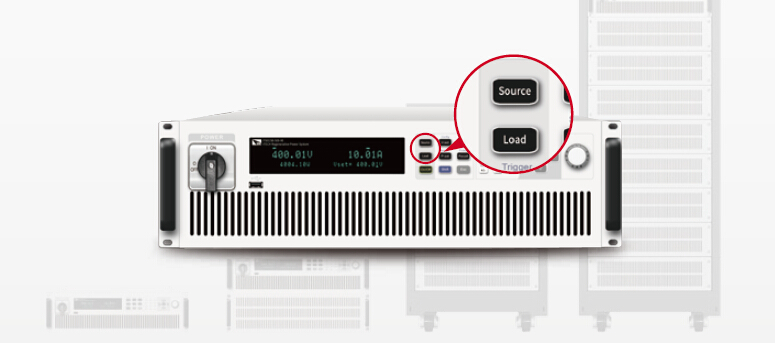

源载功能 一键切换

IT6000B系列融合了2个设备，一台双向直流电源和一台回馈式直流负载。并且人性化的在面板上设计了功能键，使用户可以方便的将IT6000B当做一台双向可编程直流电源使用，或者当做一台能量回馈式直流电子负载使用。为用户节省了设备所占空间、花费成本以及连接仪器待测物所耗费的时间。

🔒
