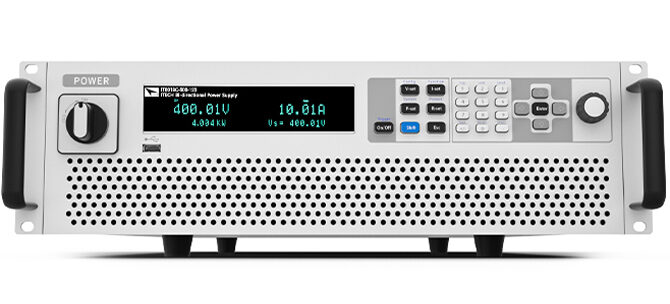

IT6000C系列 双向可编程直流电源

IT6000C系列 双向可编程直流电源

型号：IT6000C
分类 ITECH 艾德克斯 / 直流电源系列 应用场景 ITECH 艾德克斯
我要询价

用途场景

研发 实验室研发、新产品开发、技术研究
生产 生产线检测、工艺控制、制造过程监控
品控 质量检验、来料检测、成品测试
合规认证 计量检测、仪器校准、精度验证
教学实训 教学实验、技能培训、实训演示
维修 设备维修、故障诊断、维护保养

规格参数

产品概要

IT6000C系列是一款基于第三代SiC技术而研发的双向可编程直流电源，既能实现source的功能，提供功率；又具备sink能力，不但可以吸收功率还能将消耗的能量清洁的返回至电网，具有标准的双象限功能。IT6000C电压可至2250V。利用主从模式支持并联，主动均流，功率可扩展至2MW。内置函数发生器，可以自由的产生任意波形，并通过USB接口导入LIST文件生成波形。具有高可靠性的设置功能和保护特性，丰富的测量功能使IT6000C系列广泛应用于汽车电子、绿色能源、高速测试、大功率测试等多个方面，是一款功能丰富、性能优异、适用广泛的直流电源。 产品型录 产品视频 操作视频 产品介绍 产品介绍视频2 应用资料 用户手册

产品型号

型号电压电流功率分辨率精 度接 口尺寸
IT6005C-80-15080V150A5kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6010C-80-30080V300A10kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6015C-80-45080V450A15kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6030C-80-90080V900A30kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6045C-80-135080V1350A45kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6060C-80-180080V1800A60kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6075C-80-204080V2040A75kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6090C-80-204080V2040A90kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6105C-80-204080V2040A105kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6120C-80-204080V2040A120kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6135C-80-204080V2040A135kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6150C-80-204080V2040A150kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6165C-80-204080V2040A165kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006C-300-75300V75A6kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012C-300-150300V150A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018C-300-225300V225A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036C-300-450300V450A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054C-300-675300V675A54kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072C-300-900300V900A72kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090C-300-1125300V1125A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108C-300-1350300V1350A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126C-300-1575300V1575A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144C-300-1800300V1800A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162C-300-2025300V2025A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180C-300-2040300V2040A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198C-300-2040300V2040A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006C-500-40500V40A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012C-500-80500V80A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018C-500-120500V120A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036C-500-240500V240A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054C-500-360500V360A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072C-500-480500V480A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090C-500-600500V600A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108C-500-720500V720A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126C-500-840500V840A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144C-500-960500V960A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162C-500-1080500V1080A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180C-500-1200500V1200A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198C-500-1320500V1320A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006C-800-25800V25A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012C-800-50800V50A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018C-800-75800V75A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036C-800-150800V150A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054C-800-225800V225A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072C-800-300800V300A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090C-800-375800V375A90kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108C-800-450800V450A108kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126C-800-525800V525A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144C-800-600800V600A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162C-800-675800V675A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180C-800-750800V750A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198C-800-825800V825A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018C-1500-401500V40A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036C-1500-801500V80A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054C-1500-1201500V120A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072C-1500-1601500V160A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090C-1500-2001500V200A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108C-1500-2401500V240A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126C-1500-2801500V280A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144C-1500-3201500V320A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162C-1500-3601500V360A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180C-1500-4001500V400A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198C-1500-4401500V440A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018C-2250-252250V25A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036C-2250-502250V50A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054C-2250-752250V75A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072C-2250-1002250V100A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090C-2250-1252250V125A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108C-2250-1502250V150A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126C-2250-1752250V175A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144C-2250-2002250V200A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162C-2250-2252250V225A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180C-2250-2502250V250A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198C-2250-2752250V275A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U

*以上规格如有变动，恕不另行通知

产品特点

  • 采用第三代SiC技术 ，具备Souce和Sink的双重能力
  • 高功率密度，3U内可达18kW， 并联可扩展至2MW
  • 电压输出范围：0至2250V
  • 电流输出范围：0至2040A（单机柜），0至8000A（机柜间并联）
  • 双向能量传递，跨象限无缝切换
  • 可作battery cycle测试，支持CC/CV/CP等多种电池充放电模式

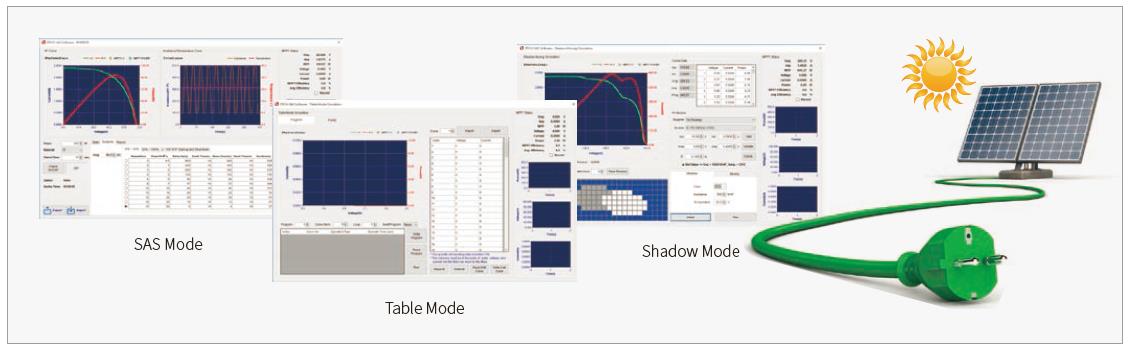

  • 可作光伏模拟器（搭配SAS1000软件），支持 太阳电池矩阵I-V曲线模拟功能
  • 可作电池模拟器（搭配BSS2000软件），仿真磷酸铁锂/三元锂电池特性曲线
  • 内置USB/CAN/LAN/数字IO接口，选配EtherCAT/GPIB/模拟量&RS232
  • 多种 保护功能，支持OVP、±OCP、±OPP、OTP、掉电、孤岛保护
  • 内置LV123、LV148、DIN40839、ISO-16750-2、SAEJ1113-11、LV124和ISO21848标准汽车功率网用电压曲线
  • 内置函数发生器，支持任意波形发生
  • 支持控制环优先模式设定，设置不同环路速度
  • 输出阻抗可调节

产品功能与优势

双向能量 无缝传递

IT6000C系列是一款基于第三代SiC技术而研发的双向可编程直流电源。不同于传统的电源和负载在正负电流切换时，中间会存在短暂的跳变和不连贯现象。IT6000C系列作为一款标准的高速双向电源能够实现高速的源和载电流模式转换，从而在输出和吸收电流之间进行快速连续的无缝切换，有效避免电压或电流过冲，广泛适用于电池、电池封装以及电池保护板等储能设备测试。

🔒
