规格参数
产品概述
| 分类 | 型号 |
配件内容 |
适用机种 |
| LCR 治具 | LCR-05 | Test Fixture, 4 Wire |
LCR-800/6000/8000G系列 Test fixture for measuring axial and radial lead components Frequency: DC to 1MHz Max. Voltage: +/- 35V |

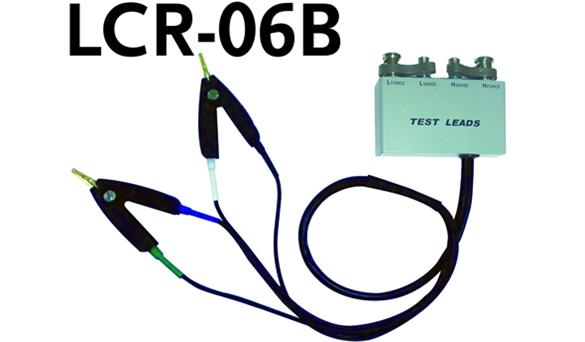

| LCR 治具 | LCR-06B | Test Fixture, 4 Wire, Kelvin Clip |
LCR-800/6000/8000G系列 Kelvin clip test lead Frequency: DC to 1MHz Max. Voltage: +/- 45V |
| LCR 治具 | LCR-07 | Test Fixture, 2 Wire, Alligator Clip |
LCR-800/6000/8000G系列 Test leads for conventional component measurement. Useful for high impedance measurement. Two-wire measurement applicable to low C or high R. Frequency: DC to 1MHz Max. Voltage: +/- 35V |
| LCR 治具 | LCR-08 | Test Fixture, 4 Wire, SMD/Clip tweezers |
LCR-800/6000/8000G系列 SMD / chip tweezers Frequency: DC to 1MHz Max. Voltage: +/- 35V |
| LCR 治具 | LCR-09 |
Test Fixture, 4 Wire, SMD/Chip test fixture (Phase out, recommand LCR-15) |
LCR-800/8000G系列 SMD / chip test fixture Frequency: DC to 10MHz Max. Voltage: +/- 35V Applicable size: 0603 to 1812 |
| LCR 治具 | LCR-12 | Test Fixture, 4Wire, Kelvin Clip |
LCR-8000G系列 Kelvin clip test leads with GND line. Frequency: DC ~ 10MHz Max. Voltage: +/- 35V Applicable Instruments:LCR-8110G/8105G/8101G |
| LCR 治具 | LCR-15 | Test Fixture, 4Wire, Kelvin Clip |
LCR-800/6000/8000G系列 SMD / chip test fixture Frequency: DC to 10MHz Max. Voltage: +/- 45V Applicable size: 0201 to 1812 |
| LCR 治具 | LCR-16 | External DC Bias Voltage box |
LCR-6000系列 Frequency: 40Hz to 1MHz Max. Voltage: +/- 45V |
| LCR 治具 | LCR-17 | External DC Bias Current box |
LCR-6000系列 Frequency: 40Hz to 1MHz Max. Voltage: +/- 2.5A |
LCR-09/LCR-13已经停产,建议型号为fixture LCR-15 .
产品特性
- LCR测试仪专用测试线
