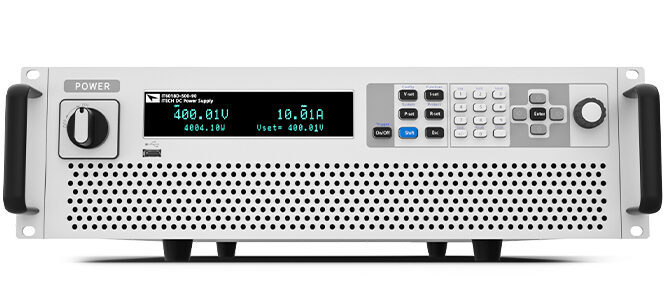

IT6000D系列 大功率可编程直流电源

IT6000D系列 大功率可编程直流电源

型号：IT6000D
分类 ITECH 艾德克斯 / 直流电源系列 应用场景 ITECH 艾德克斯
我要询价

用途场景

研发 实验室研发、新产品开发、技术研究
生产 生产线检测、工艺控制、制造过程监控
品控 质量检验、来料检测、成品测试
合规认证 计量检测、仪器校准、精度验证
教学实训 教学实验、技能培训、实训演示
维修 设备维修、故障诊断、维护保养

规格参数

产品概要

IT6000D系列提供单路输出可编程直流电源，适用于在实验室和自动测试系统中提供大功率、稳定的直流供电。 IT6000D 系列电源的自动量程输出特性，可在整个功率范围内提供更为宽泛的电压和电流组合，具备灵活性。 IT6000D 系列应用范围宽广，采用SiC技术， 电流范围最高达8000 A 及电压范围最高达 2250V 。同时，电源提供多种标准通讯接口，简化和加快测试开发 ; 紧凑的 3U 设计有效节省机架空间。如需更高的输出功率，可通过简易并联多台相同规格设备，以搭建总功率高达2 MW 的电源系统。 产品型录 产品视频 产品介绍 应用资料 用户手册

产品型号

型号电压电流功率分辨率精 度接 口尺寸
IT6005D-80-15080V150A5kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6010D-80-30080V300A10kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6015D-80-45080V450A15kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6030D-80-90080V900A30kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6045D-80-135080V1350A45kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6060D-80-180080V1800A60kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6075D-80-204080V2040A75kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6090D-80-204080V2040A90kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6105D-80-204080V2040A105kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6120D-80-204080V2040A120kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6135D-80-204080V2040A135kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6150D-80-204080V2040A150kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6165D-80-204080V2040A165kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006D-300-75300V75A6kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012D-300-150300V150A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018D-300-225300V225A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036D-300-450300V450A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054D-300-675300V675A54kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072D-300-900300V900A72kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090D-300-1125300V1125A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108D-300-1350300V1350A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126D-300-1575300V1575A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144D-300-1800300V1800A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162D-300-2025300V2025A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180D-300-2040300V2040A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198D-300-2040300V2040A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006D-500-40500V40A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012D-500-80500V80A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018D-500-120500V120A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036D-500-240500V240A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054D-500-360500V360A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072D-500-480500V480A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090D-500-600500V600A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108D-500-720500V720A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126D-500-840500V840A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144D-500-960500V960A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162D-500-1080500V1080A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180D-500-1200500V1200A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198D-500-1320500V1320A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6006D-800-25800V25A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6012D-800-50800V50A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6018D-800-75800V75A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036D-800-150800V150A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054D-800-225800V225A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072D-800-300800V300A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090D-800-375800V375A90kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108D-800-450800V450A108kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126D-800-525800V525A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144D-800-600800V600A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162D-800-675800V675A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180D-800-750800V750A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198D-800-825800V825A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018D-1500-401500V40A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036D-1500-801500V80A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054D-1500-1201500V120A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072D-1500-1601500V160A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090D-1500-2001500V200A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108D-1500-2401500V240A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126D-1500-2801500V280A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144D-1500-3201500V320A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162D-1500-3601500V360A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180D-1500-4001500V400A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198D-1500-4401500V440A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6018D-2250-252250V25A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT6036D-2250-502250V50A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT6054D-2250-752250V75A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6072D-2250-1002250V100A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT6090D-2250-1252250V125A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6108D-2250-1502250V150A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6126D-2250-1752250V175A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6144D-2250-2002250V200A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT6162D-2250-2252250V225A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6180D-2250-2502250V250A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT6198D-2250-2752250V275A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U

*以上规格如有变动，恕不另行通知

产品特点

  • 电压范围高达2250V
  • 电流输出范围：0至2040A（单机柜），0至8000A（机柜间并联）
  • 主从并联，功率可扩展至2MW
  • 采用高频率开关式结构，支持定电压（CV）、定电流(CC)自动切换功能
  • 采用SiC技术， 3U体积可达18kW
  • 电源效率高达92%
  • 各种保护功能（支持OVP、OCP、OPP、OTP，掉电及输入欠压保护）
  • 支持数据记录器功能，可连续记录输出电压和电流的最大值、最小值、平均值参数，并可自动依序执行
  • 支持外部数据记录功能，内部缓冲，PC定期向机器读取测量数据
  • 标配USB/CAN/LAN/数字IO接口，以及选配EtherCAT/GPIB/模拟量&RS232接口
  • 支持SCPI协议，内置Web服务器

产品功能与优势

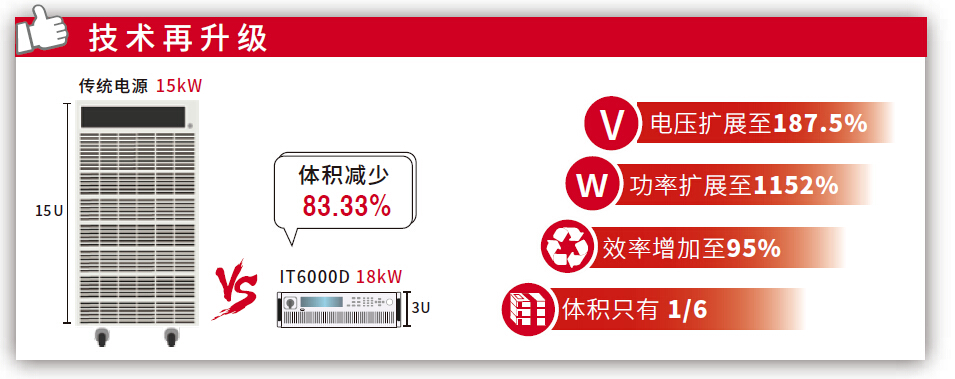

3U/18kW高功率密度

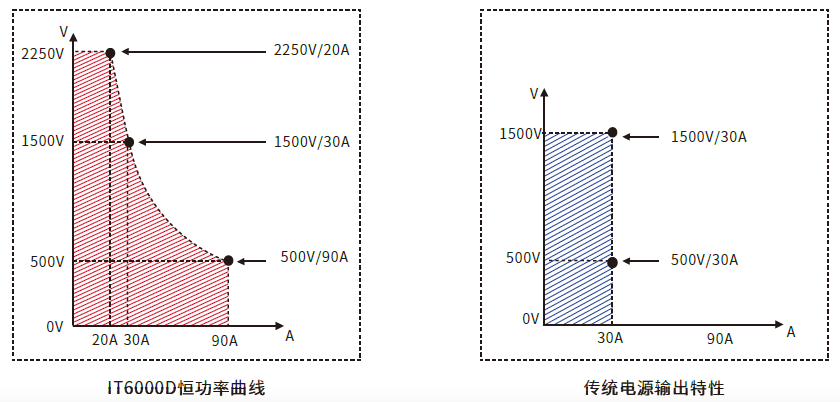

IT6000D系列采用SiC技术，可达3U 18kW的高功率密度，具有低输出噪音及涟波、优异的市电扰动调节、负载调节与快速瞬时响应。其具有大范围的电压80V~2250V，电流510A~30A的组合，适合从设计到产品测试生产流程的每一测试验证用电源。

🔒
