规格参数

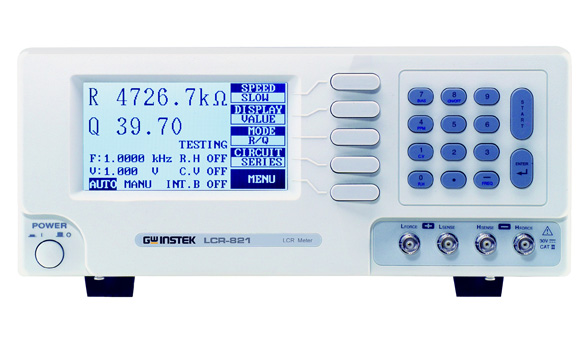

产品概述
产品特性
- Test Frequency:
- 12Hz~200kHz (LCR-821)
- 12Hz~100kHz (LCR-819/829)
- 12Hz~10kHz (LCR-817/827)
- 100Hz~2kHz (LCR-816/826)
- 0.05%~0.1% Basic Accuracy
- 100 Sets Memory for Save/Recall of Settings
- R/Q, C/D, C/R, L/Q, Z/θ, L/R Test Modes
- Absolute Value,ΔValue, and Δ% Measurement Display
- 240 x 128 dot Matrix LCD Display
- Displays Condition and Test Result Simultaneously
- Standard Interface: RS-232C (LCR-821)/ Handler (LCR-829/827/826)
- Optional Interface: RS-232C (LCR-819/817/816)
技术规格
| 规格 | |
| 测试频率 | |
| 12Hz ~ 200kHz (504 steps) for LCR-821;12Hz ~ 100kHz(503 steps) for LCR-819/829;12Hz ~ 10kHz(489 steps) for LCR-817/827;100Hz ~2kHz (245 steps) for LCR-816/826 | |
| 基本精度 (*) | |
| 0.05% for basic accuracy for LCR-821/819/817;0.1% for basic accuracy for LCR-829/827/826/816 | |
| 测试速度 | |
| 68ms for LCR-821/819/817/816, 34ms for LCR-829/827/826 | |
| 测试信号水平 | |
| 5mV ~ 1.275Vrms ( 5mV/step ) for LCR-821/819/829/817/827;0.1V ~ 1.275Vrms ( 5mV/step )for LCR-816/826 | |
| DC BIAS | |
| 内部 | 2V |
| 外部 | 0 ~ 35V for LCR-821; 0 ~ 30V for LCR-819/829/817/827/816/826 |
| 显示范围(**) | |
| 电阻 | R 0.00001Ω ~ 99999kΩ |
| 电容 | C 0.00001pF ~ 99999uF |
| 电感 | L 0.00001mH ~ 99999H |
| 品质因数 | Q 0.0001 ~ 9999 |
| 耗散因数 | D 0.0001 ~ 9999 |
| 阻抗 | |Z| 0.00001Ω ~ 99999kΩ for LCR-821 |
| 相角 (度) | θ -180.00° ~ 180.00° for LCR-821 |
| 测试模式 | |
| R/Q, C/D, C/R, L/Q, Z/θ, L/R for LCR-821 only | |
| 等效电路 | |
| 并联或串联选择 | |
| 存储 | |
| 100 memory blocks total | |
| 平均 | |
| 1～255 times | |
| 测试速度模式 | |
| 低,中和高 | |
| 显示模式 | |
| Value, △, △% | |
| 显示 | |
| 240 x 128 点矩阵 C.C.F.L背光 LCD | |
| 接口 | |
| 标配 : RS-232C for LCR-821;标配 : Handler Interface for LCR-829/827/826;选配 : RS-232C Interface for LCR-819/817/816(包括用于RS-232C接口的LCR-Viewer软件) | |
| 电源 | |
| 线性电压范围 | 100V - 240V, 47-63Hz/400Hz |
| 尺寸 & 重量 | |
| 330(W) x 149(H) x 437(D)mm;约. 5.5kg | |
| (*)：基本精度随着被测设备的速度，频率，交流信号电平和阻抗而变化。 | |
| (**)：显示范围是指可以在屏幕上显示的测量值范围。 有关测量范围，请参阅LCR-800用户手册。 | |
点击下载
点击下载
标配与配件
User manual x1, Power cord x1, LCR-06A x1
OPTION
Opt. 01 RS-232C Interface ( Factory Installed )
Opt. 01 RS-232C Interface ( Factory Installed )
OPTIONAL ACCESSORIES
LCR-05 Test Fixture for Axial & Radial Leaded Components
LCR-06A Kelvin Clip Test Lead
LCR-07 Test Fixture, Two-Wire with Alligator Clips
LCR-08 Test Fixture (Tweezers) for SMD / Chip Components
LCR-09 Test Fixture for SMD / Chip Components
LCR-13 Test Fixture for SMD / Chip Components
GRA-402 Rack Adapter Panel, Rack Mounting (19", 4U)
GTL-232 RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer
GTC-001 Instrument Cart
GTC-002 Instrument Cart
