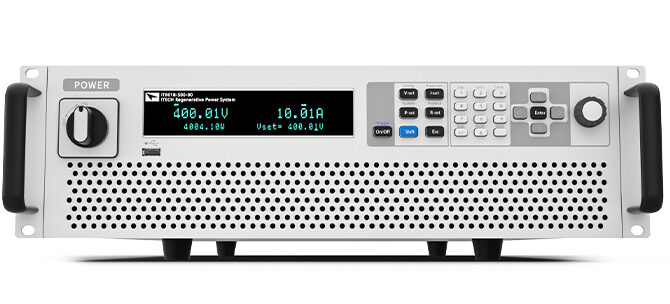

IT8000系列 回馈式直流电子负载

IT8000系列 回馈式直流电子负载

型号：IT8000
分类 ITECH 艾德克斯 / 直流电子负载系列 应用场景 ITECH 艾德克斯
我要询价

用途场景

研发 实验室研发、新产品开发、技术研究
生产 生产线检测、工艺控制、制造过程监控
品控 质量检验、来料检测、成品测试
合规认证 计量检测、仪器校准、精度验证
教学实训 教学实验、技能培训、实训演示
维修 设备维修、故障诊断、维护保养

规格参数

产品概要

IT8000系列是一款基于第三代SiC技术而研发的大功率能量回馈式直流电子负载，既能模拟各种负载特性，又能将电能回馈电网，不但为用户节省了用电和散热成本，同时也符合节能环保的需求。采用模块化高功率密度设计，3U体积内可提供高达18kW的功率吸收，通过主从并联、主动均流，可将功率扩展至2MW，特别适用于大功率电源、蓄电池、光伏电池、电动汽车、储能系统等测试领域。 产品型录 产品视频 产品介绍 应用资料 用户手册

产品型号

型号电压电流功率分辨率精 度接 口尺寸
IT8005-80-15080V150A5kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8010-80-30080V300A10kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8015-80-45080V450A15kW0.001V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8030-80-90080V900A30kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8045-80-135080V1350A45kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8060-80-180080V1800A60kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8075-80-204080V2040A75kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8090-80-204080V2040A90kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8105-80-204080V2040A105kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8120-80-204080V2040A120kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8135-80-204080V2040A135kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8150-80-204080V2040A150kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8165-80-204080V2040A165kW0.001V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8006-300-75300V75A6kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8012-300-150300V150A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8018-300-225300V225A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8036-300-450300V450A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8054-300-675300V675A54kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8072-300-900300V900A72kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8090-300-1125300V1125A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8108-300-1350300V1350A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8126-300-1575300V1575A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8144-300-1800300V1800A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8162-300-2025300V2025A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-300-2040300V2040A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-300-2040300V2040A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8006-500-40500V40A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8012-500-80500V80A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8018-500-120500V120A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8036-500-240500V240A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8054-500-360500V360A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8072-500-480500V480A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8090-500-600500V600A90kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8108-500-720500V720A108kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8126-500-840500V840A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8144-500-960500V960A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8162-500-1080500V1080A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-500-1200500V1200A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-500-1320500V1320A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8006-800-25800V25A6kW0.01V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8012-800-50800V50A12kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8018-800-75800V75A18kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8036-800-150800V150A36kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8054-800-225800V225A54kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8072-800-300800V300A72kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8090-800-375800V375A90kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8108-800-450800V450A108kW0.01V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8126-800-525800V525A126kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8144-800-600800V600A144kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8162-800-675800V675A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-800-750800V750A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-800-825800V825A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8162-500-1080500V1080A162kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-500-1200500V1200A180kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-500-1320500V1320A198kW0.01V/0.1A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8018-1500-401500V40A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8036-1500-801500V80A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8054-1500-1201500V120A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8072-1500-1601500V160A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8090-1500-2001500V200A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8108-1500-2401500V240A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8126-1500-2801500V280A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8144-1500-3201500V320A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8162-1500-3601500V360A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-1500-4001500V400A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-1500-4401500V440A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8018-2250-252250V25A18kW0.1V/0.001A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2323U
IT8036-2250-502250V50A36kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS2326U
IT8054-2250-752250V75A54kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8072-2250-1002250V100A72kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23215U
IT8090-2250-1252250V125A90kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8108-2250-1502250V150A108kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8126-2250-1752250V175A126kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8144-2250-2002250V200A144kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23227U
IT8162-2250-2252250V225A162kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8180-2250-2502250V250A180kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U
IT8198-2250-2752250V275A198kW0.1V/0.01A≤0.02%+0.02%FS/≤0.1%+0.1%FSUSB/CAN/LAN/数字I/O口，选配GPIB/模拟量&RS23237U

*以上规格如有变动，恕不另行通知

产品特点

  • 可将直流电量回馈至本地电网，回馈效率可达95% *1

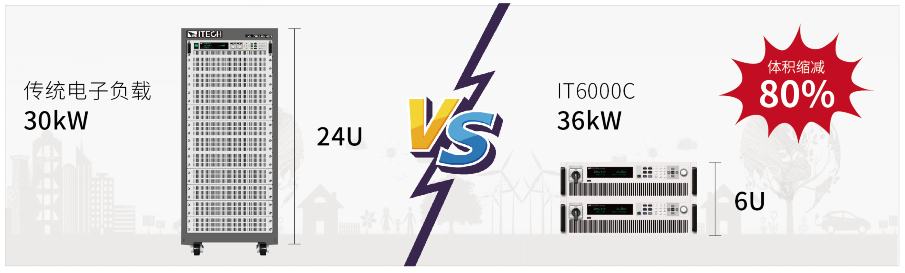

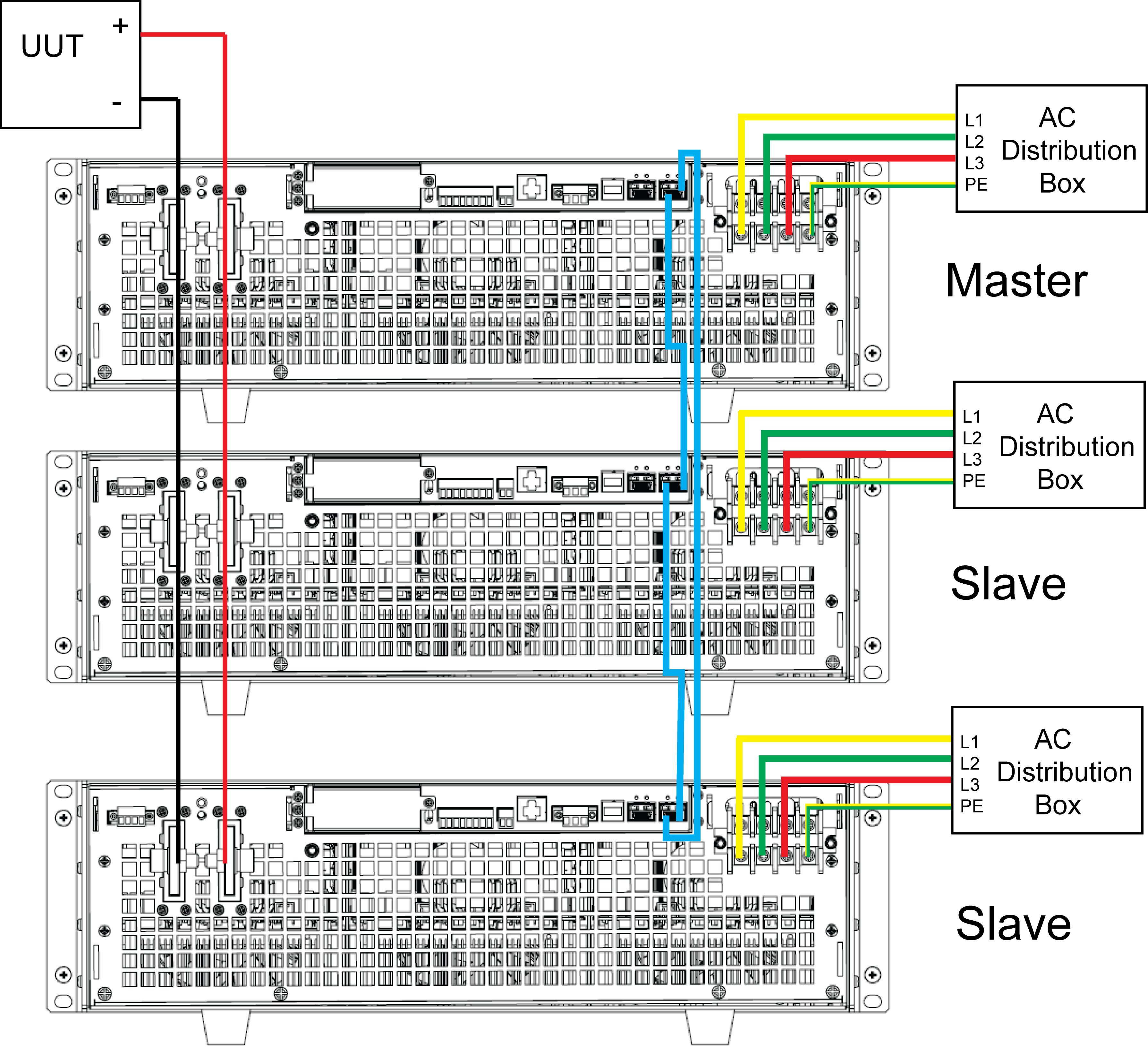

  • 高功率密度，18kW仅3U高度 ，主从并联可扩展至2MW
  • 输入电压最高可达2250V
  • 电流输出范围：0至2040A（单机柜），0至8000A（机柜间并联）
  • 采用第三代SiC功率半导体器件

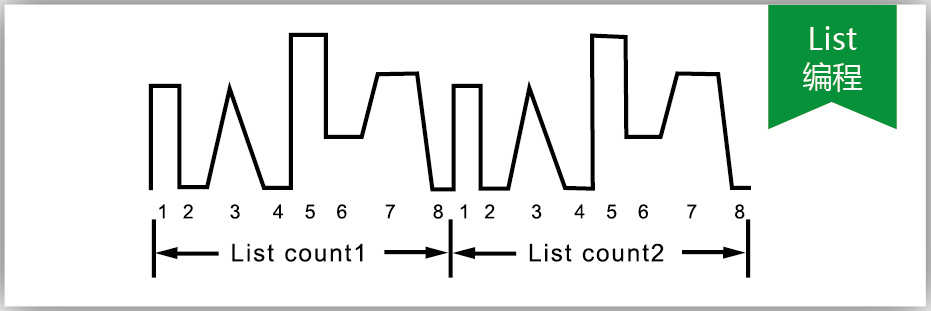

  • 支持LIST功能，并通过USB可导入LIST文件

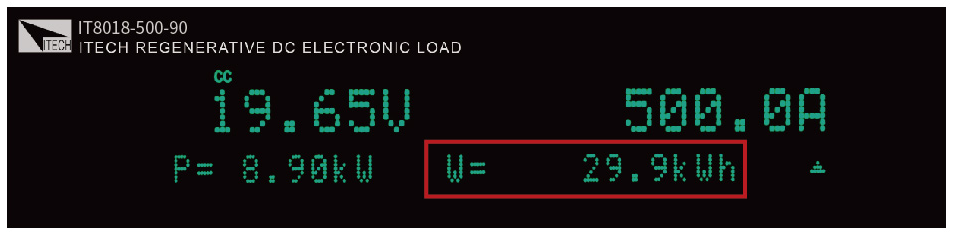

  • 并网电量累计功能

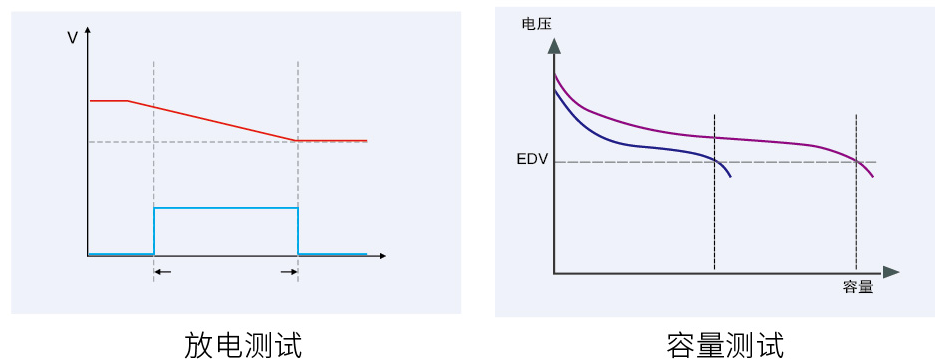

  • 电池测试功能、短路功能测试
  • 具有预充电功能，防止直流加载电流过冲
  • 各种保护功能（支持OVP、OCP、OPP、OTP、Vsense 反接保护，掉电及输入欠压保护）
  • 标配USB/CAN/LAN/数字IO接口，以及选配EtherCAT/ GPIB/模拟量&RS232接口
  • 支持SCPI协议，LabVIEW
  • *1 回馈的电能是为本地电能再利用，非公共电网
  • 应用领域

产品功能与优势

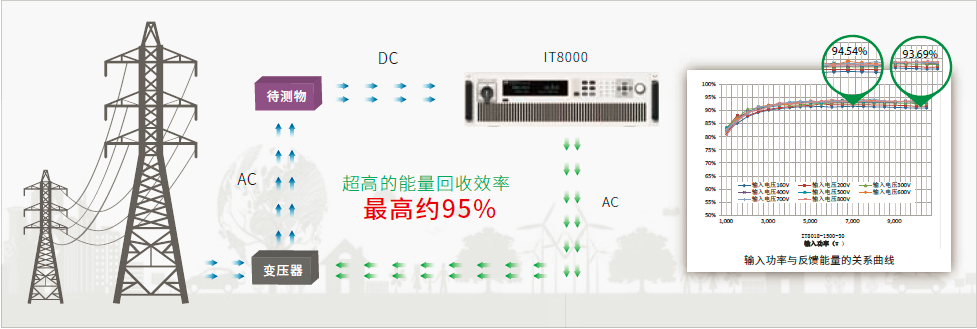

能量回收效率约95%

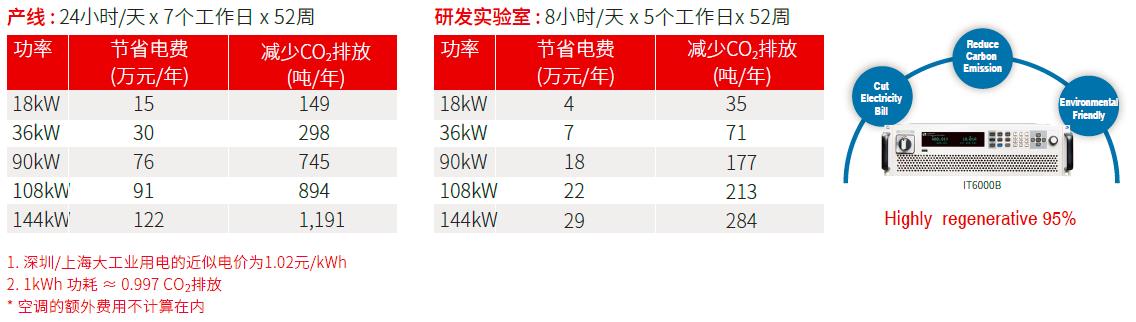

IT8000系列能量回馈式直流电子负载不同于能量消耗型的普通电子负载，其主要的特点是提供能量回收功能，可以回收电能然后厂内直接利用，而非以热能的形式消耗掉。其转换效率可约95%，不但大大降低了用户的用电成本，同时也避免使用空调或昂贵的制冷系统，减少噪音。

🔒
