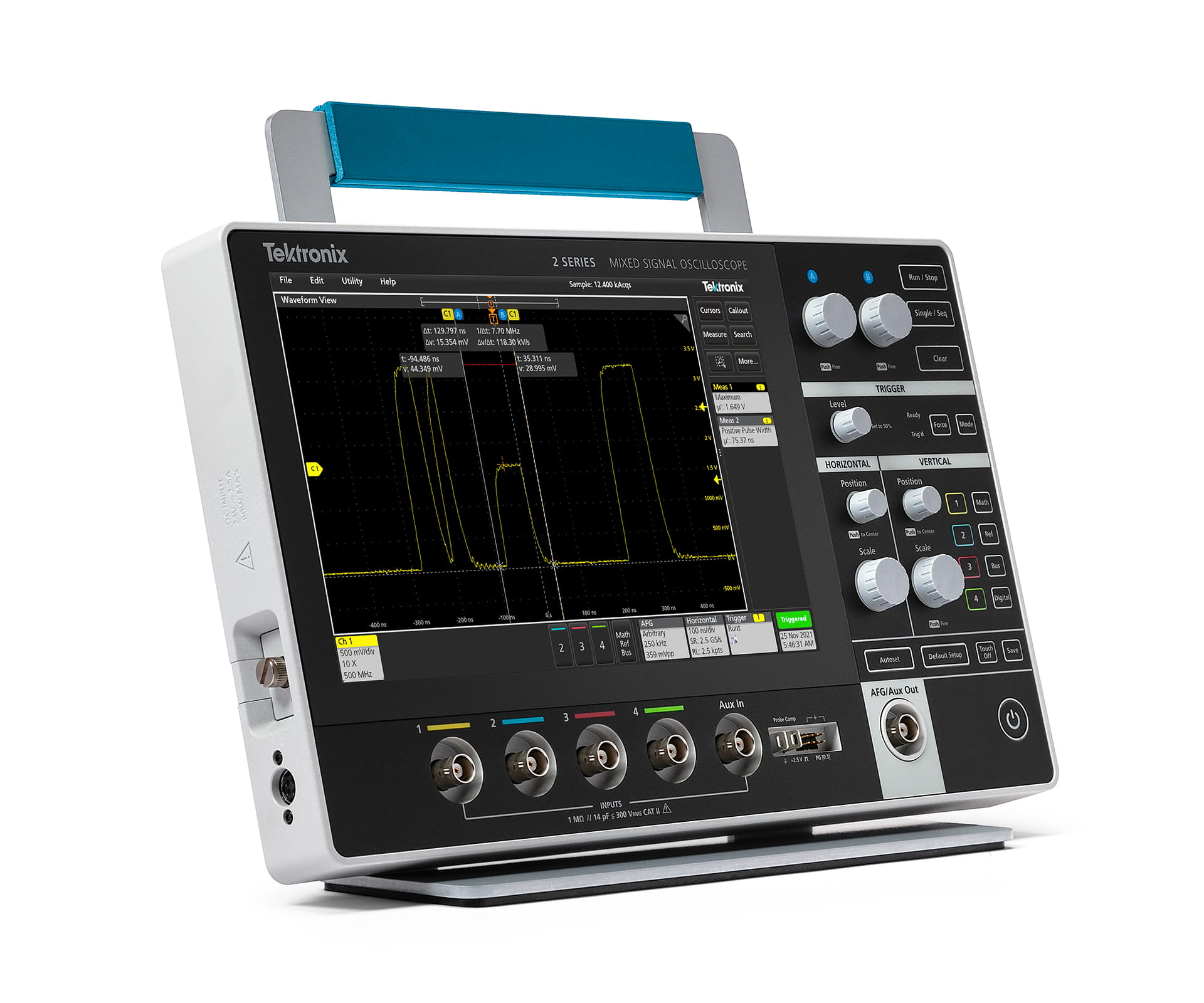

MSO24 Oscilloscope: 70 MHz - 500 MHz, 4 Analog and 16 Digital Channels
分类
Tektronix泰克
/ 示波器
应用场景
Tektronix泰克
用途场景
研发
实验室研发、新产品开发、技术研究
生产
生产线检测、工艺控制、制造过程监控
品控
质量检验、来料检测、成品测试
合规认证
计量检测、仪器校准、精度验证
教学实训
教学实验、技能培训、实训演示
维修
设备维修、故障诊断、维护保养
规格参数
竞品对比（Tektronix vs 其他品牌）
| KEY PERFORMANCE SPECIFICATIONS | |
|---|---|
| Analog input channels | 4 inputs |
| Bandwidth | 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz |
| Sample rate — half channels | 2.5 GS/s |
| Sample rate — all channels | 1.25 GS/s |
| Waveform capture rate | >4,000,000 wfms/s |
| Record length | 10 M points per channel |
| Vertical resolution | 8-bit ADC; up to 16-bit in high-resolution mode |
| STANDARD TRIGGER TYPES | |
| Trigger types | Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, and parallel bus |
| STANDARD ANALYSIS | |
| Cursors | Waveform, V bars, H bars, and V&H bars |
| Measurements | 37 |
| Plots | XY, limit mask |
| Math | Basic waveform arithmetic, FFT, and advanced equation editor |
| Search | Search on any trigger criteria |
| SERIAL TRIGGER, DECODE AND ANALYSIS (OPTIONAL) | |
| Supported protocols | I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, CAN XL, LIN, Automotive Ethernet 10BASE-T1S, and SENT |
| DIGITAL INPUT CHANNELS (OPTIONAL) | |
| Digital channels | 16 inputs |
| ARBITRARY FUNCTION GENERATOR (OPTIONAL) | |
| Bandwidth | 50 MHz waveform generation |
| Waveform types | Arbitrary, sine, square, pulse, ramp, triangle, DC level, gaussian, lorentz, exponential rise/fall, sin(x)/x, random noise, haversine, and cardiac |
| DIGITAL PATTERN GENERATOR (OPTIONAL) | |
| Bits | 4-bit |
| Modes | User defined, manual, and toggle |
| DISPLAY | |
| Size | 10.1-inch TFT color |
| Resolution | WXGA (1280 x 800) |
| Touch | Capacitive multi-touch |
| CONNECTIVITY | |
| USB | USB 2.0 Device (one port); USB 2.0 Host (dual-port) |
| Ethernet | LAN (10/100 MB/s Base-T Ethernet) |
| BATTERY PACK (OPTIONAL) | |
| Slots | 2 battery slots with hot-swap capability |
| Typical usage | 8 hours with dual batteries |
| STANDARD PROBES INCLUDED | |

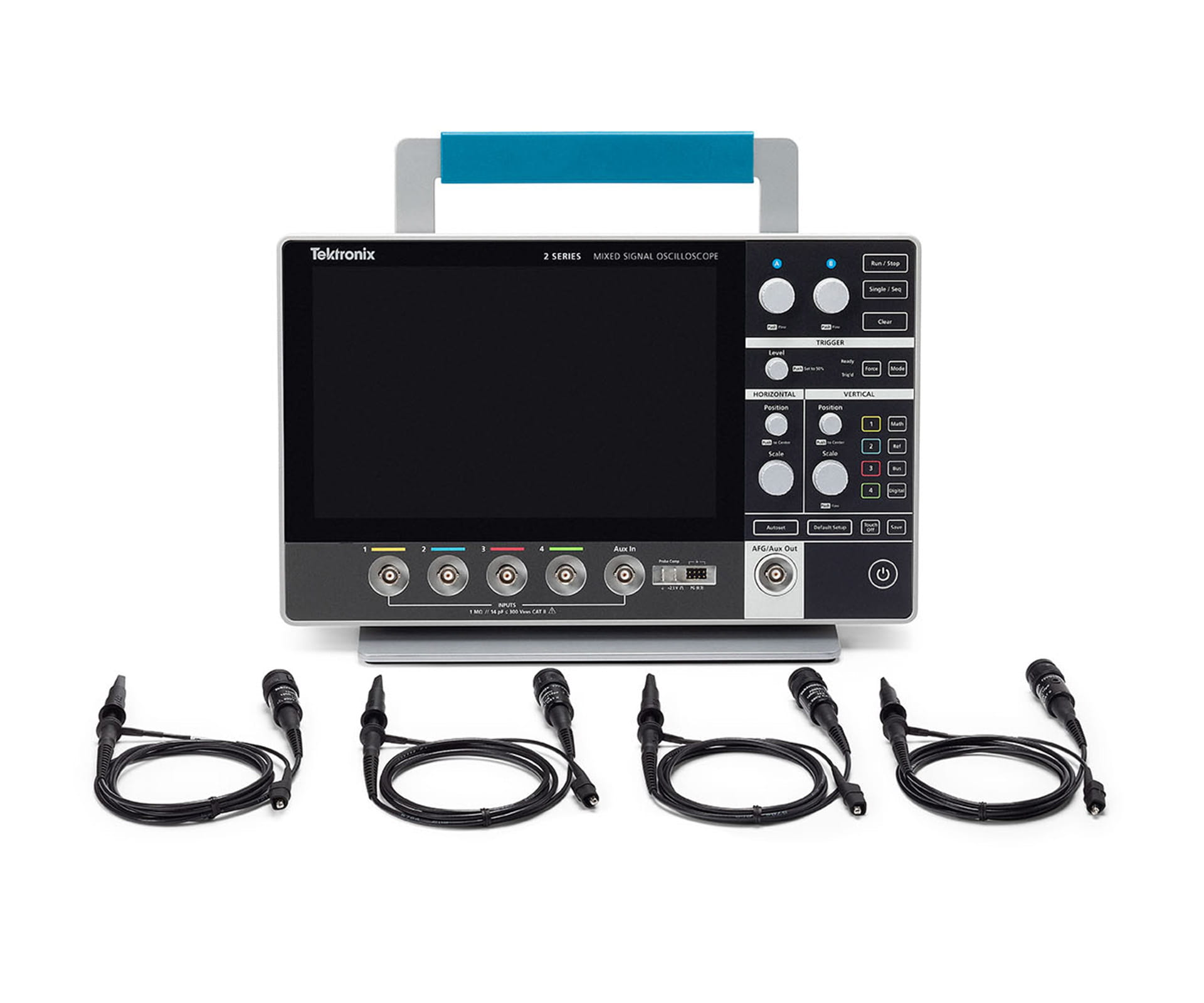

| Passive voltage probe | One TPP0200 200 MHz, 10:1 per channel |
| WARRANTY | |
| 1-year standard | |
